SML380/450 Vertical packaging machine (expanded version of SML-300)
- This is a amplifying machine based on SML - 300 model, it is suitable for packing the goods of larger size apllied to the powder, granule or other light bubble items of packaging, such as potato chips, shrimp, crispy rice, cereals, flour,etc.
- Tel：+86 15721208277
-
Content
|
SML380/450 Vertical packaging machine (expanded version of SML-300) |
Features
1. This machine type is developed on the basis of SML - 300 and it is applied to the packaging of the light .
2. CPU Single chip machine + stepping motor motor control,with convenient and precise setting of the bag length
3. Adjusting of the bag length , cursor positioning , coding and other functions can be realized with digital setting ,and they can be input on the operation screen directly.;
4. Adjusting of the bag length , cursor positioning , coding and other functions can be realized with digital setting ,and they can be input on the operation screen directly.
5. Bag manufacturing , filling, sealing, cutting,inflation , coding , shutdown with certain quantity and set-cut packaging can be finished automatically.
Model： SML-380 SML450
Film width： 380mm 450mm
Bag length： 80-250mm 80-280mm
Bag width： 60-160mm 80-230mm
Packing speed 15-30bag/min 5-20bag/min
Power： 220V/2.5KW 220V/3KW
weight： 420KG 450KG
Photo Related
B: Turn-plate feeding
F: tipping bucket feeding
P: horizontal screw feeding
L: vertical screw feeding
C: electronic balance feeding
Video Related

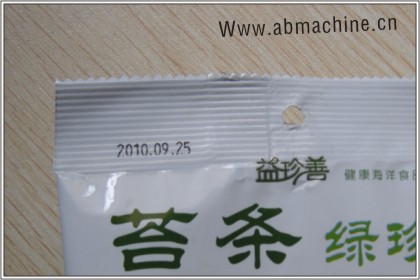

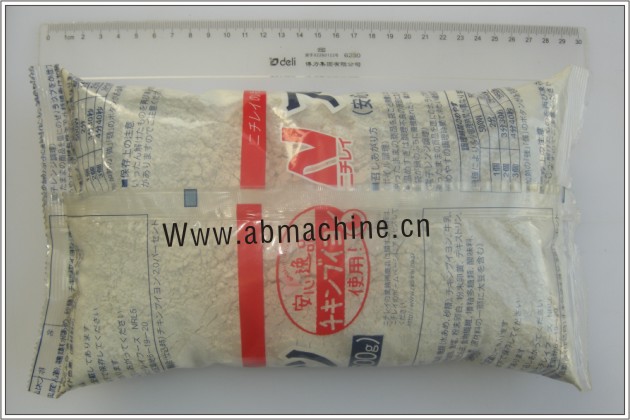

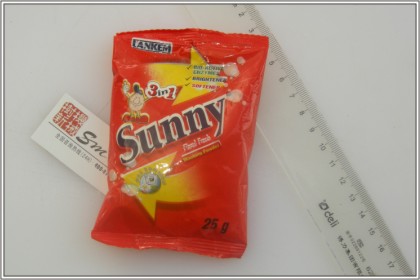

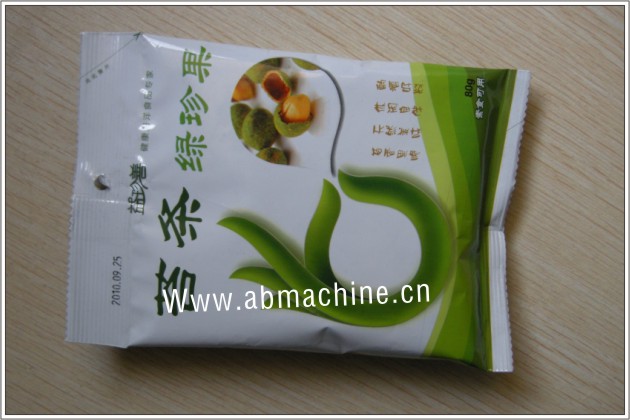

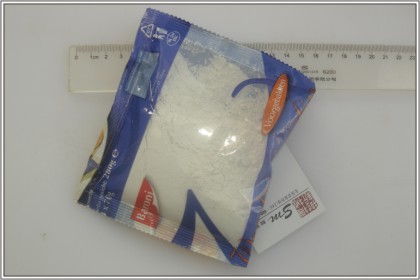

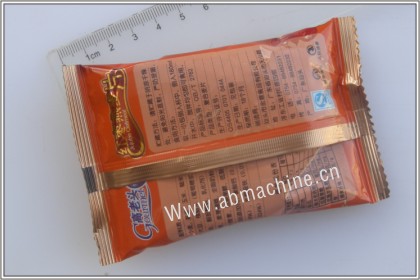

Samples Related

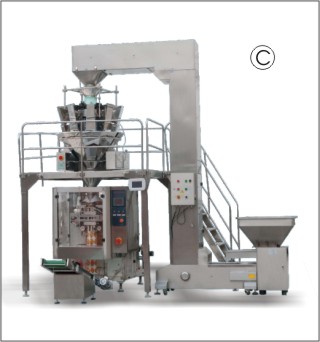

Machine Related
Similar machine: SML-200 tea bag packing
machine, SML-260 liquid/gel packing machine, SML-300 vertical packing machine(
for powder, granular, small square), SML-380/450 big bag packing machine( just
bigger model of SML-300)
