SMZ-600 Pillow packing machine(suitable for packing big size product and product with plate )

  • This is a new big packing machine, The original four axis drive control system, film centerless positioning, roll film are not afraid of its weight. And configurable automatic feeding device, fully automatic packaging can be realized. Use for paper rol
  • Tel:+86 15721208277
  • Content

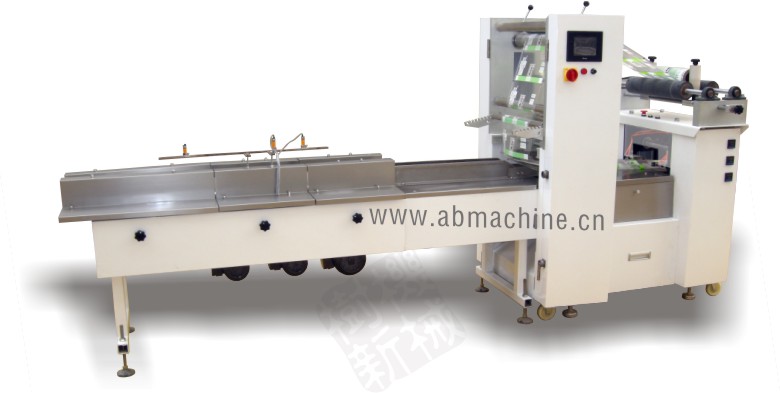

SMZ-600 Pillow packing machine(suitable for packing big size product and product with plate)


Price: (Standard configuration)
  Standard Fob Shanghai Port price: *****USD
  Control system: four-motor drive
  Human-machine interface:colorful touch screen
  Spare parts: each present a set
  Attachment: present a coding machine
  Warranty: 1year
  Warranty period: 12 months for free
  After sale service: Free training, free installing, free spare parts
  Payment: TT, 50% for deposit, balance after machine finished.
  Shipping: Standard sea wooden case
  Special need: OEM is ok


    Features

SMZ - 600/900 automatic packing machine is designed by our company independent , it is suitable for large articles or big packing with box , original four-motor drive, digitizing input parameters, quickly alignment at the cursor, with three-dimensional angular institution at the same time, aplly to the big packing with box, packing, sealing smooth and nice, angular symmetry, on the stability, is the ideal packaging equipment of big packing.apllied object, for example: in the moderate packaging of biscuits, european-style cakes two packing , four packing, quick-frozen box food , paper roll packing
        1. Patent product is characterized by special structure, convenient operation and stable performance;
    2. Centerless positioning of the roll membrane can use the roll membrane with larger diameter and the membrane sending precision will not be influenced by its weight;
    3. Man-machine interface: bag length, material level, cursor place, coding, air-flushing and other functions can be realized with digital setting; Directly inputting on the screen and then saving for debugging for the next time;
    4. Fault self-diagnosis function makes it easy to display the fault;
    5. Specially designed bag holder and lifting horizontal sealing structure can flexibly adapt to the packaging materials in different specifications;
    6. You will finally select your favorite one among several optional configurations and perfect functions;
    7. It is used with SMT-160, to iron the sealed mouth on both ends after packaging;
    8. Material supply system can be automatically matched to realize automatic feeding;




    Parameter

Model  SMZ-600
Fillm width  600mm
Bag length  150-500mm
Product width  50-150mm
Product thickness  10-120mm
Film roll diameter  <450mm
capacity  10-150bag/min
power  220V/4KW
weight  750KG

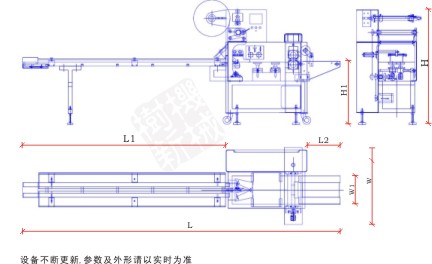

        L      3950mm
        W      950mm
        H      1450mm
        L1      2500mm
        L2      400mm
        W1      380mm
        H1      800mm


Model  SMZ-900
Film width  900mm
Bag length  OEM
Product width  OEM
Product height OEM
Film roll diameter  <400mm
Packing Speed  10-100bag/min
Power   220V/4KW
weight   850KG
        L      3950mm
        W      1500mm
        H      1450mm
        L1      2500mm
        L2      400mm
        W1      600mm
        H1      800mm


It also can be OEM to meet your special request of the packing range of the size.




    Video Related



SMZ-600 Packaging paper rolls assembly line



SMZ-600 Pillow packaging machine packaging paper rolls



Packaging machine for packaging of beef, lamb, pills, quick-frozen food



SMZ-600 Pillow packaging machine packaging petri dish



SMZ-600 Pillow packaging machine packaging gloves






    Samples Related
























    Sample Related


This machine matching with SMZT-160 can be for packing toilet paper roll, it can finish packing and heating shrinking at the same time. It also can be used for packing beef slices, mutton slices, baozi, steamed buns with plate.

( Beef slices packing machine, mutton slices packing machine, paper roll packing machine).



    Company introduction

    Shanghai SHUXIN Machinery Co., Ltd main products: Food machines, packing machines, transfer machines and other nonstandard machines. Food machines include: sunflower seed candy equipment, puffed rice candy equipment, peanut candy equipment, sticky candy equipment, nougat equipment, sesame candy equipment,     From the establishing year 2007, our company already has more than thousand customers both here and abroad, more than 3000 sets machines have been sold, with a lot of high opinion.
    Company has develop producing equipment, high level service party, and powerful developing capacity. Now, we have many new technologies which are leading this industry's development, and we have the patents.
Company will focus on products' quality and after sale service more to become a model of mechanical industry.

     The introduction on the web can't fully show our capacity, we sincerely invite you to come to visit and advise our company.
